Azure Event Hubs Event Processor, Yet Another Alternative

08 March 2025

In this post, we continue exploring alternative ways to process Azure Event Hubs events with the .NET SDK.

Azure Eventhubs Event Processor Cover

In this post, we continue exploring alternative ways to process Azure Event Hubs events with the .NET SDK.

This time, we will dive into the EventProcessor class, which provides a robust framework for building customized event-driven processors.

We will cover the key features and benefits of using the EventProcessor class, including its ability to customize checkpoint and ownership data storage, while leveraging resiliency and load balancing features from the SDK.

Additionally, we will discuss how to implement custom event processing logic, handle errors and use the various hooks available.

Full working sample is available on Github as usual

Event Processor

EventProcessor is an event consuming client with the capability of processing events from multiple partitions of an event hub.

This makes it suitable for production scenarios, since the abstract class already implements a lot of features such as (among other):

Connection/Disconnection management with the event hub
Possibility to process events by batch
Load balancing partition ownership
Reclaiming ownership of partitions left of by crashed consumers

You typically use EventProcessor by defining a subclass of it and by implementing its abstract methods:

public class CustomEventsProcessor : EventProcessor<CustomPartitionContext>
{
    ...

    public CustomEventsProcessor(...)
        : base(...)
    {
        ...
    }

    protected override async Task<IEnumerable<EventProcessorPartitionOwnership>>
        ClaimOwnershipAsync(
            IEnumerable<EventProcessorPartitionOwnership> desiredOwnership,
            CancellationToken cancellationToken)
    {
        ...
    }

    protected override async Task<IEnumerable<EventProcessorPartitionOwnership>>
        ListOwnershipAsync(CancellationToken cancellationToken)
    {
        ...
    }

    protected override Task OnProcessingErrorAsync(
        Exception exception,
        CustomPartitionContext partition,
        string operationDescription,
        CancellationToken cancellationToken)
    {
        ...
    }

    protected override async Task OnProcessingEventBatchAsync(
        IEnumerable<EventData> events,
        CustomPartitionContext partition,
        CancellationToken cancellationToken)
    {
        ...
    }

    protected override async Task<EventProcessorCheckpoint> GetCheckpointAsync(
        string partitionId,
        CancellationToken cancellationToken)
    {
        ...
    }

    protected override Task UpdateCheckpointAsync(
        string partitionId,
        long sequenceNumber,
        long? offset,
        CancellationToken cancellationToken)
    {
        ...
    }

    protected override async Task<IEnumerable<EventProcessorCheckpoint>>
        ListCheckpointsAsync(CancellationToken cancellationToken)
    {
        ...
    }
}

There are 4 abstract methods that you must implement:

Method	Responsibility
`ClaimOwnershipAsync`	Updates the ownership data
`ListOwnershipAsync`	Returns current ownership data
`OnProcessingEventBatchAsync`	Processes a batch of incoming events
`OnProcessingErrorAsync`	Handles errors thrown by the base class behavior during event reception

In addition, we got 3 overridable methods related to checkpoint store customization, that must be implemented too:

Method	Responsibility
`GetCheckpointAsync`	Returns checkpoint data for one partition
`UpdateCheckpointAsync`	Update checkpoint data for one partition
`ListCheckpointsAsync`	Returns all checkpoint data for all partitions

While EventProcessor checkpoint related methods are not abstract, they should be implemented nonetheless since the default implementation will simply throw a NotImplementedException.

Note also that PartitionContext representing essentially the current active partition for the operation is also customizable and extendable.

It can be used for example to store values that can be set as part of partition initialization.

Processing Events

EventProcessor provides the OnProcessingEventBatchAsync async method that allows to process a batch of events.

Unlike the typical EventProcessorClient, EventProcessor instances are created with a maximum batch size that allows the developer to process a batch of available events in one go.

In our sample, we implemented OnProcessingEventBatchAsync as in the following:

protected override async Task OnProcessingEventBatchAsync(IEnumerable<EventData> events,
    CustomPartitionContext partition, CancellationToken cancellationToken)
{
    foreach (var eventData in events)
    {
        var readOnlySpan = new ReadOnlySpan<byte>(eventData.EventBody.ToArray());
        EventPayload receivedEvent = JsonSerializer
            .Deserialize<EventPayload>(readOnlySpan)!;

        Console.WriteLine($"Consumer {Identifier} received '{receivedEvent}'...");

        _processedEvents.Add(receivedEvent);
        await UpdateCheckpointAsync(partition.PartitionId, eventData.SequenceNumber,
            eventData.Offset, cancellationToken);
    }
}

Foreach event batch, we simply loop through the events one by one performing:

Event De-serialization
Adding the event to a list
Updating the checkpoint store

Here note that as in the typical EventProcessorClient,, you have to perform checkpoint update explicitly giving you the option to perform it periodically.

In our example, we perform the checkpoint with every successfully processed events since we use an underlying fast in-memory cache with Redis.

Handling Event Reception Errors

OnProcessingErrorAsync is called by the EventProcessor base class when an exception is thrown during event processing.

Handling errors effectively is crucial to ensure the robustness and reliability of your event processing solution.

If not implemented correctly, then processing errors from the base class could be silently ignored.

In our sample, we implemented it in a simplistic manner, but please do consider what occurs when this is called in your production scenario:

protected override Task OnProcessingErrorAsync(Exception exception, CustomPartitionContext partition,
    string operationDescription, CancellationToken cancellationToken)
{
    Console.WriteLine("Processing Error !");
    Console.WriteLine("==================");
    Console.WriteLine(exception.Message);

    return Task.CompletedTask;
}

Managing Partition Ownership Storage

As we saw in a previous post, within a consumer group a partition can only be owned by 1 client consumer and 1 client consumer can own several partitions, this is by design in Event Hubs.

In the typical EventProcessorClient, ownership management is completely handled for the developer and is stored in a blob.

With EventProcessor, load balancing and partition reclaiming logic relies on the ClaimOwnershipAsync and ListOwnershipAsync methods implemented by the developers to store and retrieve ownership data.

As a developer, you don’t have to manage any load balancing or reclaiming logic, all you have to do is:

Implement storage of the desired ownership determined by the base class
Implement reading of the current ownership data

In our sample, these methods are implemented as in the following:

protected override async Task<IEnumerable<EventProcessorPartitionOwnership>>
    ClaimOwnershipAsync(
        IEnumerable<EventProcessorPartitionOwnership> desiredOwnership,
        CancellationToken cancellationToken)
{
    List<EventProcessorPartitionOwnership> ownerships = [];

    foreach (var ownership in desiredOwnership)
    {
        /*
         * Ensure that version field is updated
         */
        string version = Guid.NewGuid().ToString();

        await _checkpointOwnershipStore
            .SetOwnershipAsync(
                ownership.PartitionId,
                new Ownership(ownership.PartitionId, Identifier,
                    ownership.LastModifiedTime, version)
            );

        ownerships.Add(new EventProcessorPartitionOwnership
        {
            ConsumerGroup = ownership.ConsumerGroup,
            EventHubName = ownership.EventHubName,
            FullyQualifiedNamespace = ownership.FullyQualifiedNamespace,
            OwnerIdentifier = Identifier,
            PartitionId = ownership.PartitionId,
            LastModifiedTime = ownership.LastModifiedTime,
            /*
             * Ensure that version field is updated
             */
            Version = version
        });
    }

    return ownerships;
}

protected override async Task<IEnumerable<EventProcessorPartitionOwnership>>
    ListOwnershipAsync(CancellationToken cancellationToken)
{
    var ownership = await _checkpointOwnershipStore.GetAllOwnershipsAsync();

    return ownership
        .Select(o => new EventProcessorPartitionOwnership
        {
            FullyQualifiedNamespace = FullyQualifiedNamespace,
            ConsumerGroup = ConsumerGroup,
            EventHubName = EventHubName,
            OwnerIdentifier = o.OwnerId,
            PartitionId = o.PartitionId,
            LastModifiedTime = o.LastModifiedTime,
            Version = o.Version
        });
}

The two methods implementation relies on the _checkpointOwnershipStore member which acts as an abstraction for the ownership store.

Ultimately the RedisCheckpointOwnershipStore class implements the ICheckpointOwnershipStore interface providing read/write capability in a Redis cache. (More details in the sample 😉)

In ClaimOwnershipAsync, we ensure that:

New version is set for the desired ownership record provided by the base class
Desired ownership is recorded in the redis cache
Desired Ownership is returned to the base class as requested

In ListOwnershipAsync, we simply return what we stored in the cache via ClaimOwnershipAsync.

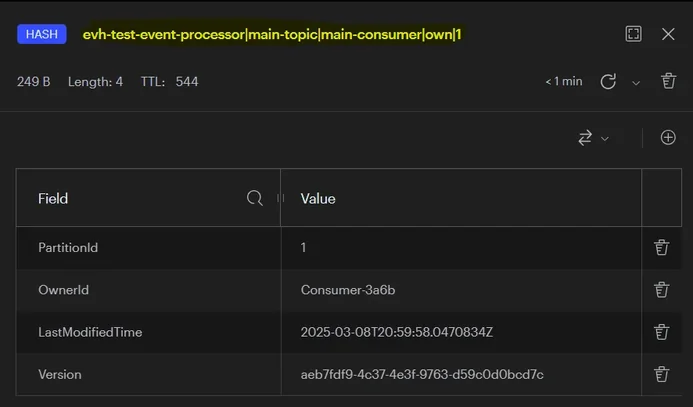

In Redis, an ownership record for a specific partition will look like this:

Event OwnerShip In Redis

Managing Partition Checkpoints Storage

To manage checkpoint storage operation, we have 3 methods to implement:

protected override async Task<EventProcessorCheckpoint> GetCheckpointAsync(string partitionId,
    CancellationToken cancellationToken)
{
    Checkpoint checkpoint = await _checkpointOwnershipStore
        .GetCheckpointAsync(partitionId);

    if (checkpoint != Checkpoint.Null)
    {
        return new EventProcessorCheckpoint
        {
            StartingPosition = EventPosition.FromSequenceNumber(checkpoint.SequenceNumber),
            PartitionId = partitionId,
            ConsumerGroup = _checkpointOwnershipStore.ConsumerGroup,
            EventHubName = _checkpointOwnershipStore.Eventhub,
            FullyQualifiedNamespace = _checkpointOwnershipStore.EventhubNamespace,
            ClientIdentifier = checkpoint.OwnerId
        };
    }

    return new EventProcessorCheckpoint
    {
        StartingPosition = EventPosition.Earliest,
        PartitionId = partitionId,
        ConsumerGroup = _checkpointOwnershipStore.ConsumerGroup,
        EventHubName = _checkpointOwnershipStore.Eventhub,
        FullyQualifiedNamespace = _checkpointOwnershipStore.EventhubNamespace,
        ClientIdentifier = checkpoint.OwnerId
    };
}

protected override Task UpdateCheckpointAsync(string partitionId, long sequenceNumber,
    long? offset, CancellationToken cancellationToken)
{
    return _checkpointOwnershipStore.SetCheckpointAsync(partitionId, new Checkpoint
    (
        partitionId,
        offset.Value,
        sequenceNumber,
        Identifier
    ));
}

protected override async Task<IEnumerable<EventProcessorCheckpoint>>
    ListCheckpointsAsync(CancellationToken cancellationToken)
{
    var checkpoints = await _checkpointOwnershipStore.GetAllCheckpointsAsync();

    return checkpoints
        .Select(c => new EventProcessorCheckpoint
        {
            StartingPosition = EventPosition.FromSequenceNumber(c.SequenceNumber),
            PartitionId = c.PartitionId,
            ConsumerGroup = _checkpointOwnershipStore.ConsumerGroup,
            EventHubName = _checkpointOwnershipStore.Eventhub,
            FullyQualifiedNamespace = _checkpointOwnershipStore.EventhubNamespace,
            ClientIdentifier = c.OwnerId
        });
}

Implementation is straightforward, we leverage _checkpointOwnershipStore to store and retrieve the checkpoint data, doing some data conversion along the way.

In redis, a checkpoint record for a specific partition will look like this:

Event checkpoint In Redis

Additional Customization

Many more methods are overridable in the EventProcessor class, among others, you can customize the following behavior:

Partition Initialization
On Event Consuming Start
On Event Consuming stop
Processing Pre-condition validation

For a complete list, checkout the EventProcessor class documentation.

Closing Thoughts

The most interesting flexibility points with EventProcessor are:

Batch processing of events
Control over ownership storage
Control over checkpoint storage

In our sample, we used the redis in-memory cache as in the previous post.

While not interesting for storing checkpoint data (due to durability guarantees), Redis can be interesting for ownership data storage since Ownership is periodically re-calculated via the load balancing and re-claiming mechanisms and thus does not require persistence durability.
